Designation System For Ni-MH Battery Packs
¡õ- GTK-¡õ¡õ¡õ¡õ- ¡õ¡õ¡õ- H - ¡õ- ¡õ- ¡õ
1 2 3 4 5 6 7
1¡¢ Number of cells in pack
2¡¢ Battery type (refer to Technical Specification of Ni-MH Single Cell)
3¡¢ Battery capacity/10
4¡¢ Ni-MH Battery
5¡¢ Configuration code
6¡¢ Connector code: M(MITSUM-M63)
J(JST-HER-02)
X(MOLEX-5264-02)
U(UNIVERSAL)
W(WIRE)
T(Tab)
7¡¢Black wire place or wire AWG.

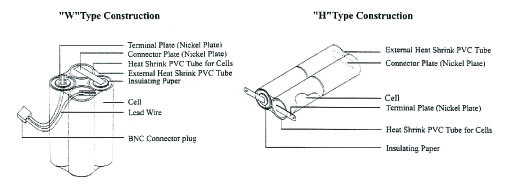

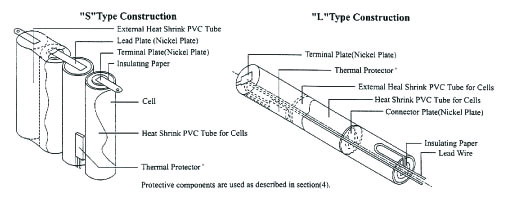

The basic constuctions for battery packs are shown as below
|
